Weight Filling Machine
Semi Automatic Weight Filling Machine (PLC Base)
PLC-based weight filling for containers from 5 kg to 30 kg+.
- 5 kg to 30 kg+
- ±0.25%
- Load cell
Liquid Filling Machine

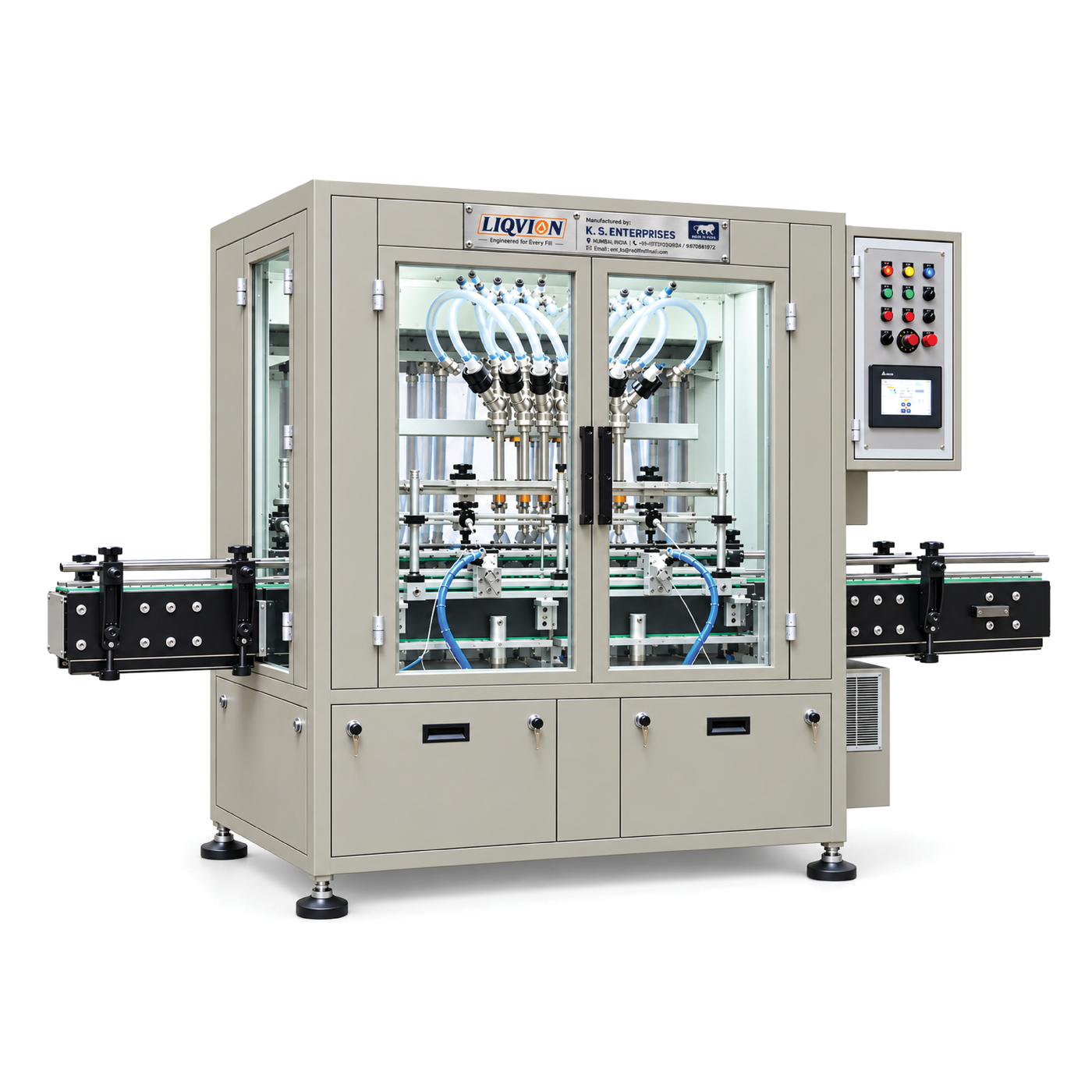

Automatic Volumetric Filling Machine (Flow Meter)
An automatic flow-meter based volumetric filling machine for production lines requiring repeatable dosing, PLC operation and conveyorised container handling.
Key Features
- UK-Based Flow Meter
- Mitsubishi PLC with 7- to 10-inch touchscreen HMI
- Drip-free nozzles with accidental drip tray
- Fast flow and fine flow settings from PLC
- Transparent toughened glass enclosure at front
Applications
Specifications
Technical details
| Filling range | 250 ml to 20 L |
|---|---|
| Heads | Available from 4 heads to 16 heads |
| Control system | Mitsubishi PLC, 7- to 10-inch touchscreen HMI, VFD conveyor control |
| Flow meter | UK-Based Flow Meter |
| Pump | 200 to 250 LPM |
| Accuracy | ±0.25% |
| Changeover | 15 to 20 minutes with flushing and PLC volume setting |
| Frame | M.S. powder coated or stainless steel |
